Deburring of Plasma, Oxyfuel, & Flame Cut Parts

Whether plasma, oxyfuel or flame cut parts: even slag thicker than three millimeters can be handled by the EdgeBreaker® 4000. This deburring machine for plasma & flame cut parts delivers high quality results due to double-sided grinding and edge rounding. The EdgeBreaker® 5000 specializes in sole slag removal. Small to large plasma and flame cut parts can easily be cleaned. We will glady advise you on how you can benefit from such a piece of machinery. Ideally we would like to demonstrate the machine performance in our leveling and deburring center with your parts.

Get an overview of our EdgeBreaker® models in comparison.

EB9000

EdgeBreaker® 9000 LINE

The super power for your plasma and oxyfuel parts.

icon-beidseitig entgraten verrunden Schlacke-entfernen
Learn more
EB 5000

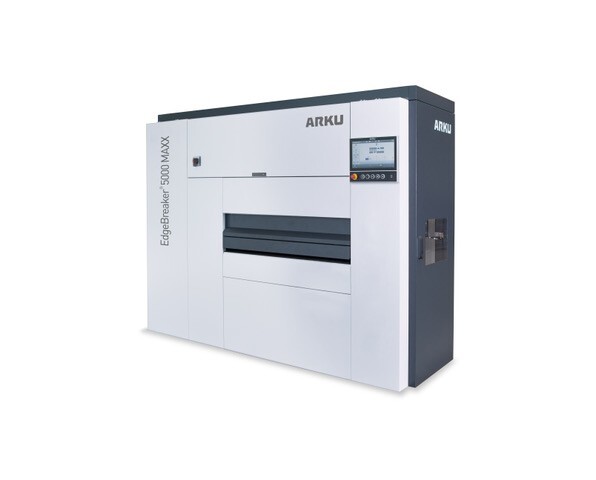

EdgeBreaker® 5000 MAX

Specialist for slag and dross removal.
Material thickness: 0.39" - 4.9" (10 - 125 mm).

icon-beidseitig ARKU_Icon_Schlacke-entfernen-unten
Learn more
EdgeBreaker 4000

EdgeBreaker® 4000

The ultimate powerhouse for flame cut parts featuring a heavy-duty grinding drum.
Material thickness: 0.03" - 4" (0.8 - 100 mm).

beidseitig entgraten verrunden
Learn more
Deburring Tumbler

Deburring Tumbler

Deburring tumblers are ideal for processing small parts.

icon-entgraten
Learn more

Deburring processes as an overview

ARKU_Icon_Slag removal

Slag removal

Deburring of flame-cut burrs can be a time consuming process. This is not the case anymore since the introduction of the EdgeBreaker® 4000. The oscillating drum allows the machine to remove burrs from parts up to 100 mm thick reliably and fast - even in large quantities.

icon-Deburring

Deburring

Deburring of flame-cut burrs can be a time consuming process. This is not the case anymore since the introduction of the EdgeBreaker® 4000. The oscillating drum allows the machine to remove burrs from parts up to 100 mm thick reliably and fast - even in large quantities.

icon-Edge rounding

Edge rounding

The edge rounding of edge for flame-cut parts includes the removal of the sharp edge along the material. In addition, an adequate radius is conducive to paint adhesion. With the help of the deburring blocks, the edge rounding is achieved on both sides of the material.

EdgeBreaker® Models in Comparison



  Processing type Processes Material thickness in inches Max. working width in inches Dimensions in inches (L x W x H)
EdgeBreaker® 9000 LINE double-sided, dry deburring,
edge rounding,
slag removal		 up to 4.9" 51" see below
EdgeBreaker® 4000 double-sided, dry deburring,
edge rounding		 0.03" - 4" 51" 122" x 87" x 87"
EdgeBreaker® 5000 MAX

single-sided,
from the bottom
(optionally double-sided)

 slag removal 0.39" - 4.9" 51" 118" x 47" x 91"
