Twice the speed for edge rounding and deburring
The EdgeBreaker® 2000 processes sheet metal parts which are punched or laser cut from both sides simultaneously. This double-sided edge rounding saves more than 50% of the time. These time savings are possible since this deburring machine not only eliminates the need for a second pass, but also the need to remove, flip, and reinsert the parts.
Consistent results for every part thanks to automatic wear compensation for abrasives
For consistent results, it is essential to always know where you stand. The EdgeBreaker® 2000 measures the remaining length of your tools (abrasives) within the machine and automatically compensates for the wear off.
Simple operation and maintenance for the deburring machine
The graphical touchscreen interface is easy to operate. It supports you in setting up the machine and provides tips on operation and maintenance. For efficient work without errors!

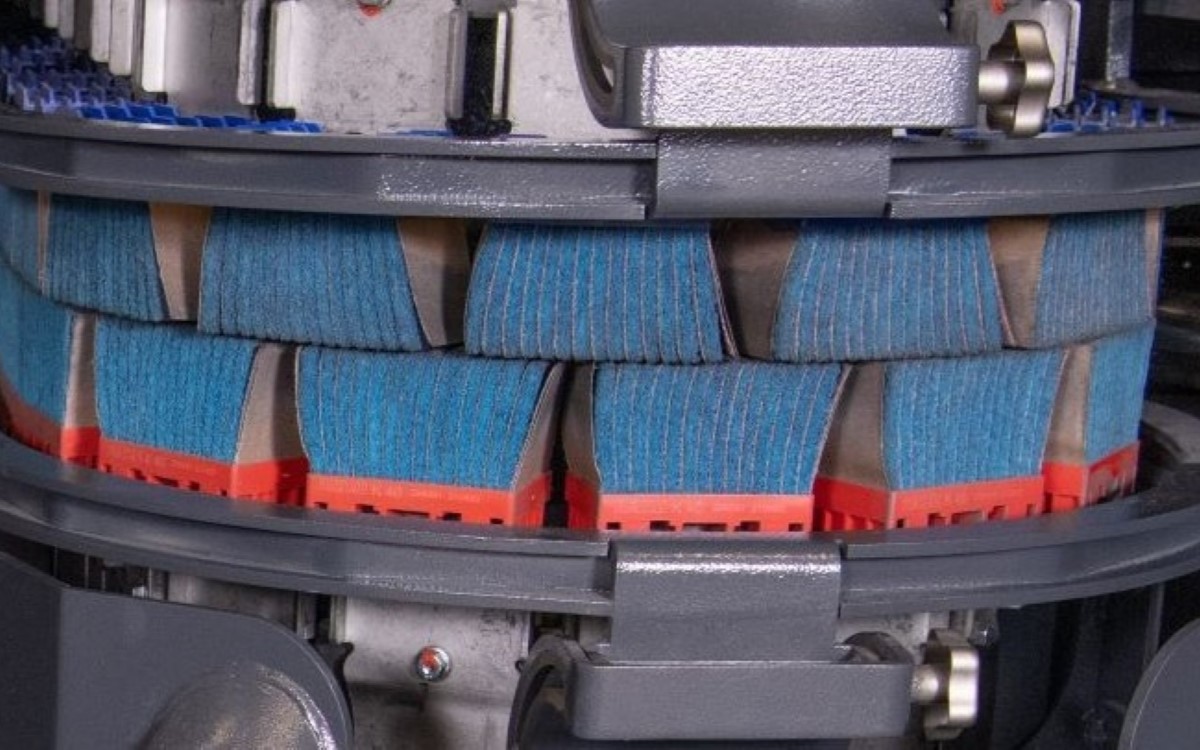

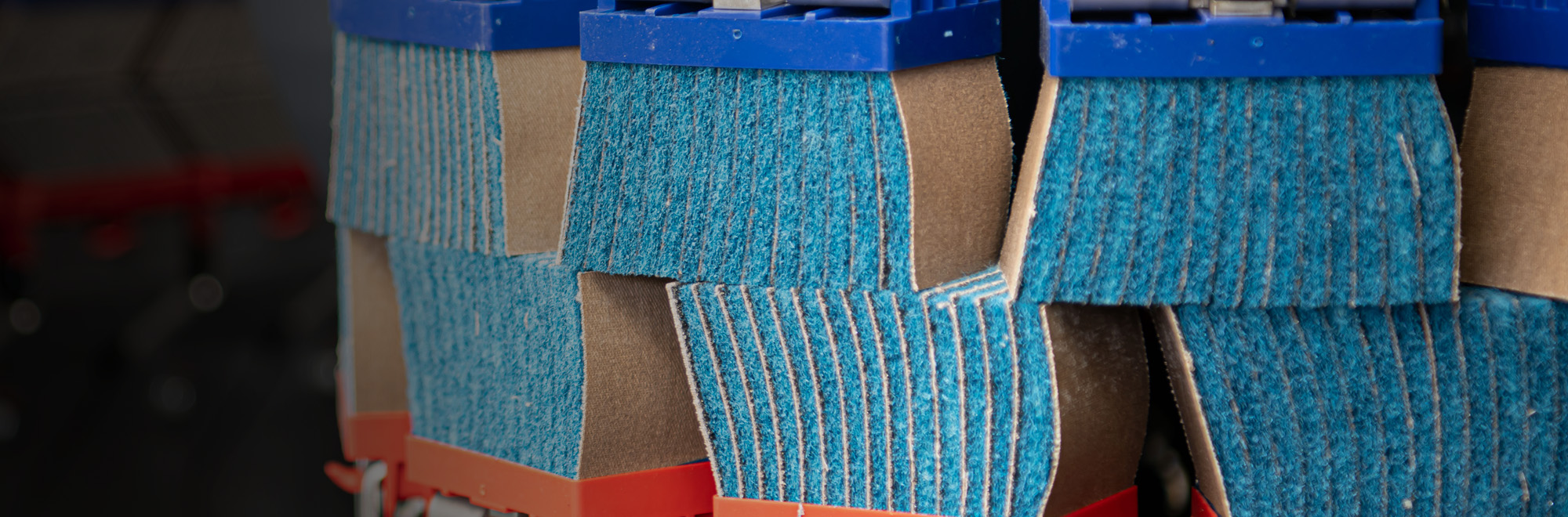

Quick change for edge rounding or deburring tools
All processing units are equipped with a quick-change system for the abrasives to minimize your set-up times. You can simply remove the brushes and click them back in, without any tools needed! The machine can be outfitted with a variety of different tools. All for optimum edge processing to suit your changing requirements.
50% Cost Savings thanks to Double-sided Processing

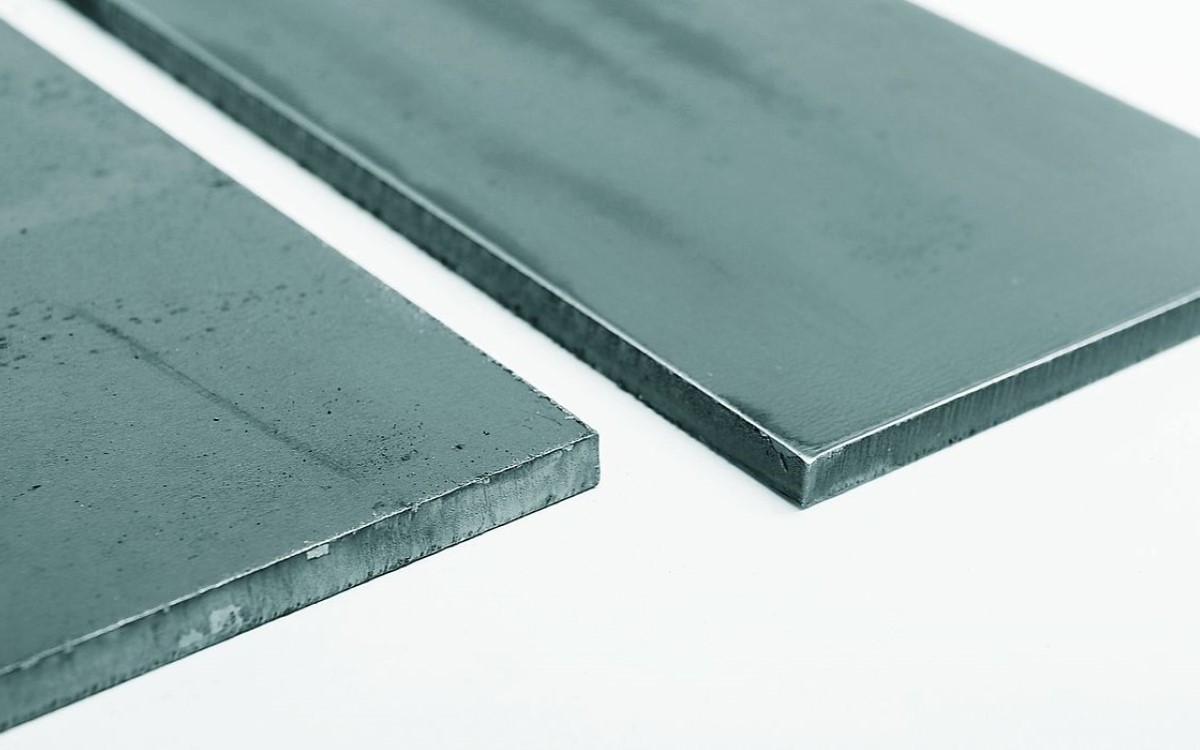

In just a single pass, the EdgeBreaker® 2000 gives your punched and laser cut sheet metal parts the finishing touch all round. Thanks to double-sided processing, the sheet edges are rounded on the top and bottom. Compared to machines working just single-sided, you save around 50% of the production time and costs. At the same time, the parts or sheets are given an attractive surface finish on both sides.
Always the Ideal Processing Settings – with the ARKU Wizard
The ARKU Wizard is an intelligent software that helps its operators to automatically adjust the processing settings of their deburring machine. During the process, the material, tool and machine data are linked together. Only four parameters (material, size of burrs, material thickness, desired edge rounding) need to be entered. The tools available to the operator are stored in the Wizard. The software automatically selects the best deburring tool for the particular processing requirement(s). In doing so, the Wizard always optimally adjusts the deburring machine to achieve maximum productivity and minimal tool wear. In this way, operators can be sure of achieving the desired processing results with minimum effort and no time wasted.
Blocks for deburring
To remove burrs on laser cut or punched parts.
Blocks for edge rounding
To round the edges including the inner and outer contours.
Blocks for laser oxide removal
To remove laser oxide along the cutting edges.
EdgeBreaker® 6000
Flexible all-rounder for any type of laser cut and punched parts. The most versatile of our automated deburring machines for laser job shops.
Material thickness: up to 25 mm.
EdgeBreaker® 3000
Powerful workhorse for maximum throughput – deburrs and edge rounds top and bottom in a single pass.
Material thickness: 0.8 - 100 mm.
EdgeBreaker® 1000
Specialist for the economic processing of small parts. Deburring, edge rounding and finishing.
Material thickness: 0.5 - 25 mm.
