Reliable deburring and edge rounding

Laser-cut & Punched Parts Deburring Machines

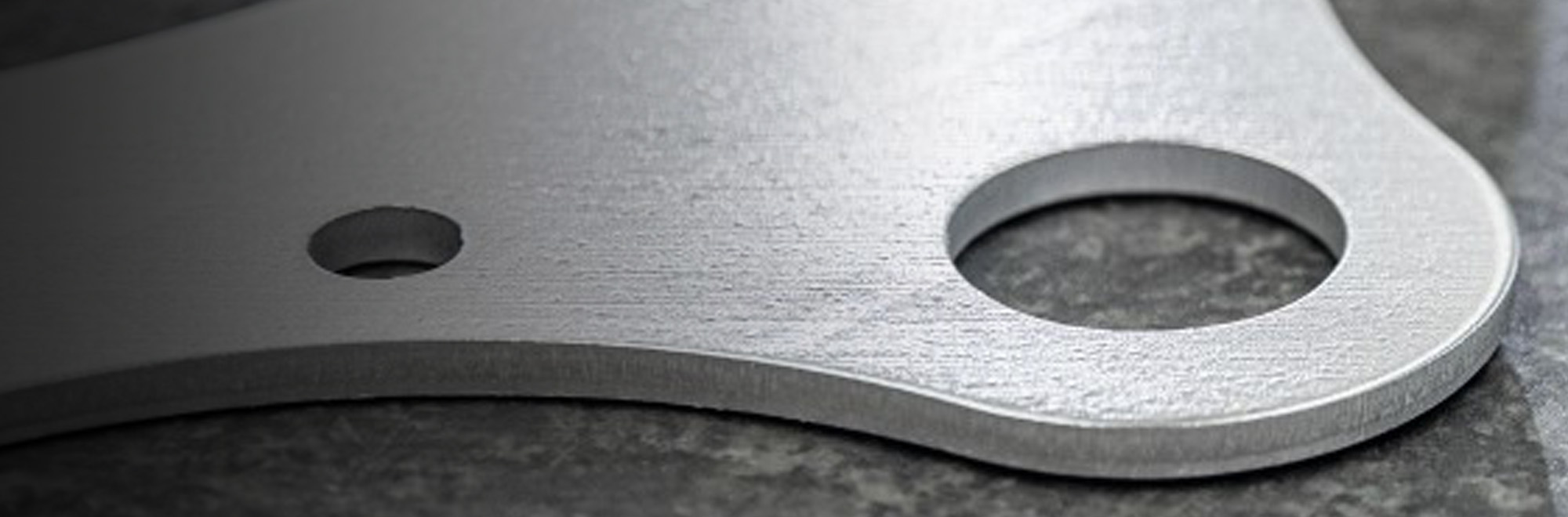

ARKU offers machines for the deburring, edge rounding and surface finishing of sheet metal parts after laser cutting and punching. These machines can also process the entire sheet metal prior to cutting. Depending on the final requirements, various methods of deburring technologies can be used. The geometry, number of pieces and part dimensions, also have an influence on the machine configuration. The goal is to always achieve consistent, high quality results for deburring and edge rounding of your punched and laser cut parts.

Here you can get an overview of our EdgeBreaker® models in comparison

EB6000

EdgeBreaker® 6000

Flexible all-rounder for any type of laser cut and punched parts. The most versatile of our automated deburring machines for laser job shops.
Material thickness: up to 25 mm.

einseitig entgraten verrunden Oberflächenfinish Oxidschicht entfernen
Learn more
EdgeBreaker 4000

EdgeBreaker® 4000

The ultimate powerhouse for laser-cut parts with a strong burr.
Material thickness: 0.8 - 100 mm.

beidseitig entgraten verrunden icon-oxide-removal
Learn more
eb3000

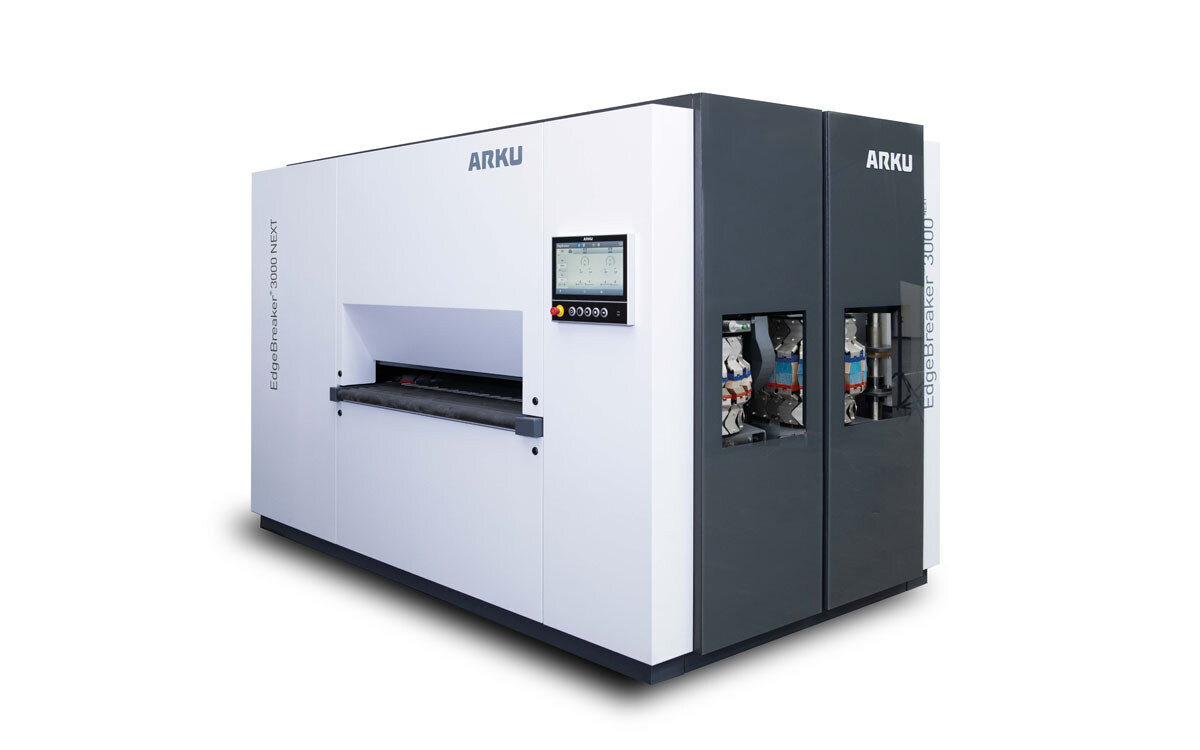

EdgeBreaker® 3000

Powerful workhorse for maximum throughput – deburrs and edge rounds top and bottom in a single pass.
Material thickness: 0.8 - 100 mm.

beidseitig entgraten verrunden icon-oxide-removal
Learn more
EdgeBreaker 2000

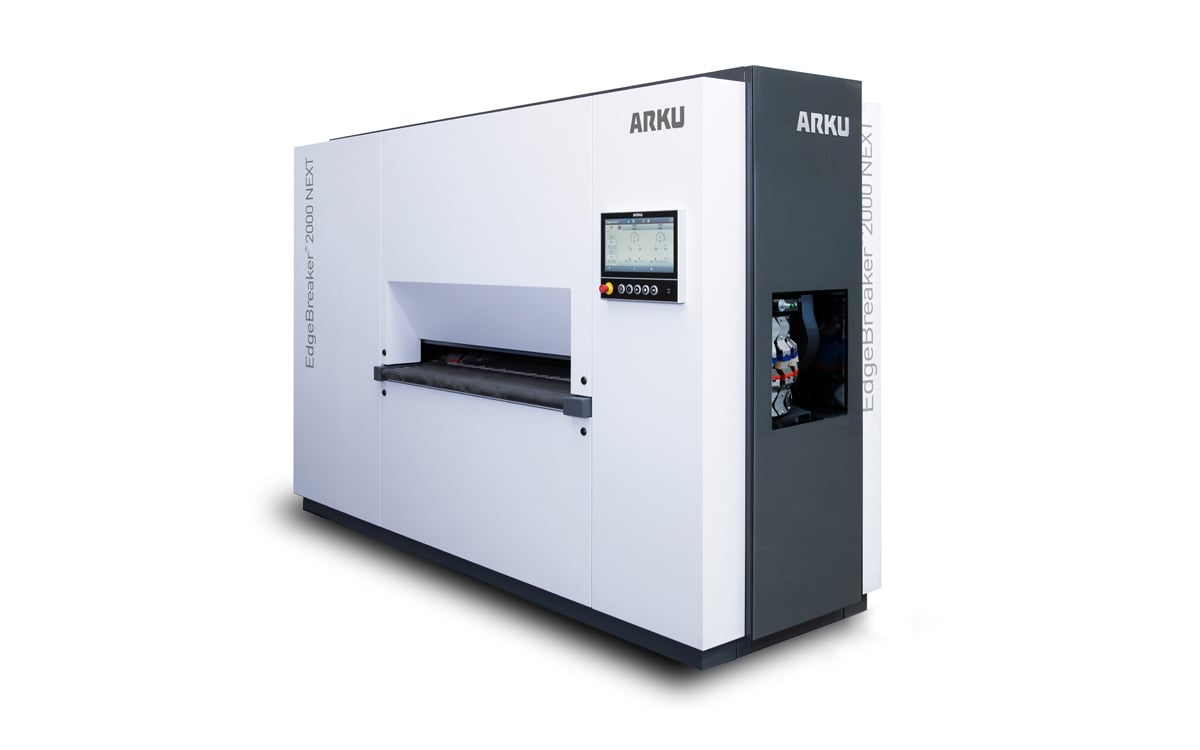

EdgeBreaker® 2000

The double-sided edge rounding expert that can also deburr.
Material thickness: 0.8 - 100 mm.

beidseitig verrunden icon-oxide-removal
Learn more
EdgeBreaker 1000

EdgeBreaker® 1000

Specialist for the economic processing of small parts. Deburring, edge rounding and finishing.
Material thickness: 0.5 - 25 mm.

einseitig entgraten verrunden Oberflächenfinish
Learn more

Deburring processes as an overview

icon-deburring

Deburring

The burr can vary when punching or laser cutting your materials. Burrs created via laser cutting and punching adhere to the material in various strengths. Therefore finding a comprehensive deburring solution is crucial.

icon-verrunden

Edge rounding

A good edge rounding result is characterized by removing the sharpness on the edges of your laser-cut or punched materials. This prevents injuries that may be caused by handling the material, while simultaneously improving downstream processing. Furthermore, a radius at the edge of the materials also improves paint adhesion.

icon-laser oxide removal

Laser oxide removal

If you are cutting via a CO2-laser with oxygen, the EdgeBreaker® series can remove any oxide layers along the cutting edge of the material.

icon-oberflaechenfinish

Surface finish

Punched and laser-cut parts often require high demands on the surface. A beautiful surface is a pleasant side effect of the deburring process. In some cases, a specific type of surface finish could be necessary.

EdgeBreaker® Models in Comparison

  Processing type Processes Material thickness Max. working width Dimensions
at 1300 mm
(L x W x H)
EdgeBreaker® 6000 single-sided, dry deburring, edge rounding, oxide removal, surface finishing 1.0 - 25 mm 1,300 mm 4,200 x 2,100 x 2,350 mm
EdgeBreaker® 4000 double-sided, dry deburring, edge rounding, oxide removal 0.8 - 100 mm 1,300 mm 3,100 x 2,200 x 2,200 mm
EdgeBreaker® 3000 double-sided, dry deburring, edge rounding, oxide removal 0.8 - 100 mm 1,300 - 2,000 mm 3,100 x 2,200 x 2,200 mm
EdgeBreaker® 2000 double-sided, dry edge rounding, oxide removal 0.8 - 100 mm 1,300 - 2,000 mm 3,100 x 1,500 x 2,200 mm
EdgeBreaker® 1000 single-sided, dry deburring, edge rounding, surface finishing 0.5 - 25 mm 250 mm 2,100 x 2,600 x 2,100 mm
